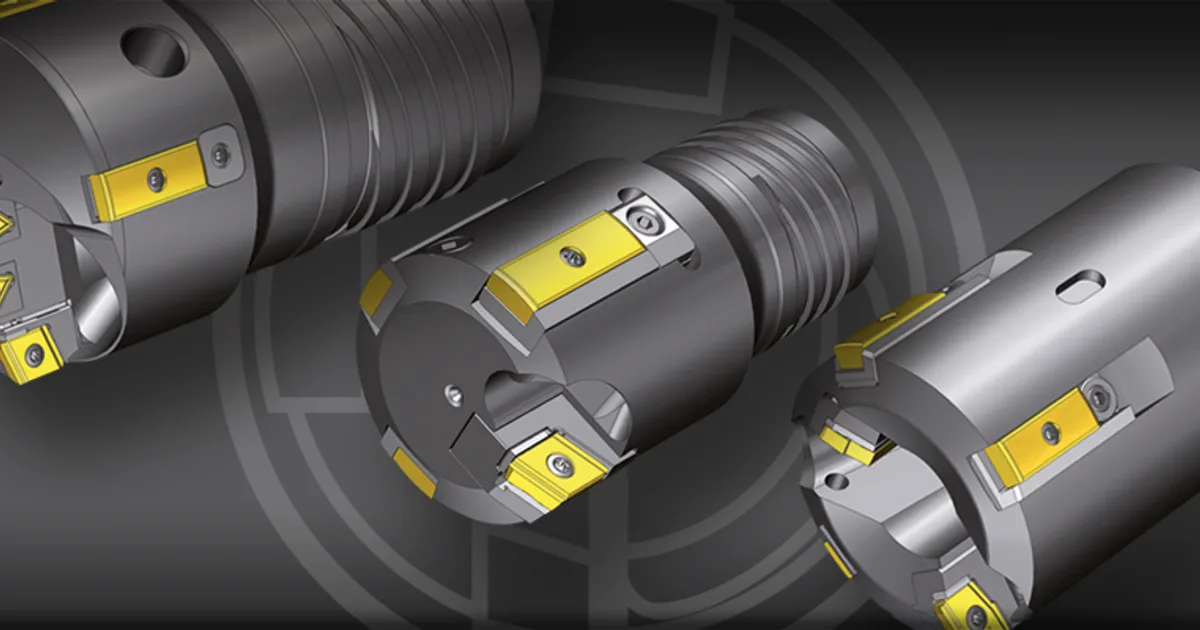

Botek BTA-System
Produktbeskrivning
För att tillföra kylvätska till arbetsstycket och för att täta processen på arbetsstycket och borrstången, kräver BTA-systemet ett tryckhuvud (BOZA). Detta system används för borrhålsdiametrar mellan 7,76 mm och 700 mm och möjliggör håldjup över 100 x D. Från dia. 18 mm består verktygen huvudsakligen av vändskär och styrplattor.
Produktblad: Produktkatalog

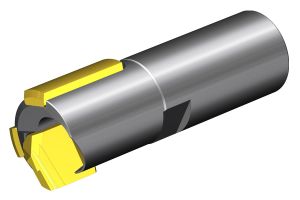

| Solid drilling | Type 20 |  |
0.571″ [14.51 mm] |
1.456″ [36.99 mm] |
1-start connection |
| Solid drilling | Type 11 |  |
0.573″ [14.55 mm] |
1.456″ [36.99 mm] |
1-start connection |

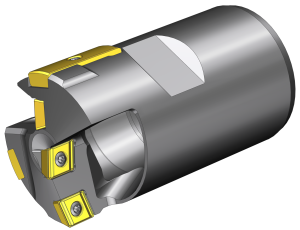

| Solid drilling | Type 70B |  |
0.984″ [25.00 mm] |
2.559″ [65.00 mm] |
1-start connection |

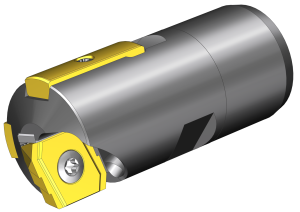

| Solid drilling | Type 12 |  |
1.122″ [28.50 mm] |
2.952″” [74.99 mm] |
1-start connection |
| Solid drilling | Type 14 |  |
0.614″ [15.60 mm] |
2.559″ [65.00 mm] |
4-start connection |
| Solid drilling | Type 61 |  |
0.616″ [15.65 mm] |
1.425″ [36.20 mm] |
4-start connection |

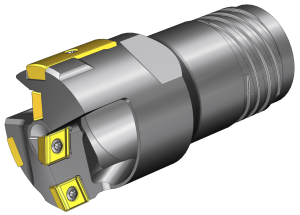

| Solid drilling | Type 70A |  |
0.984″ [25.00 mm] |
2.559″ [65.00 mm] |
4-start connection |

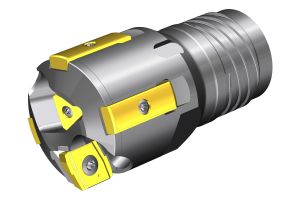

| Solid drilling | Type 64 |  |
1.130″ [28.71 mm] |
2.952″ [74.99 mm] |
4-start connection |

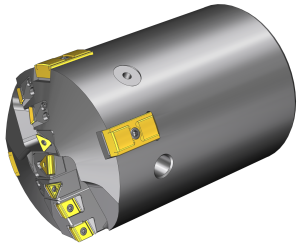

| Solid drilling | Type 43B |  |
2.362″ [60.00 mm] |
14.527″ [368.99 mm] |
1-start connection |

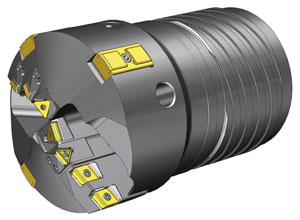

| Solid drilling | Type 43A |  |
2.362″ [60.00 mm] |
7.834″ [198.99 mm]from 7.835″ [199.00 mm] on request |
4-start connection |

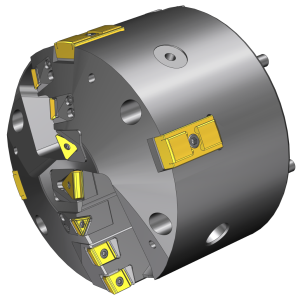

| Solid drilling | Type 43F |  |
7.835″ [199.00 mm] |
14.527″ [368.99 mm] |
flange mounting |

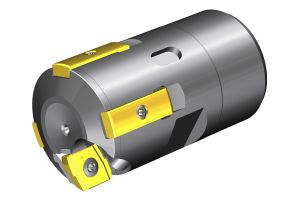

| Counterboring | Type 13B |  |
1.122″ [28.50 mm] |
2.952″ [74.99 mm] |
1-start connection |

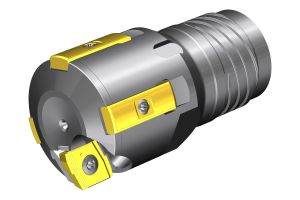

| Counterboring | Type 13A |  |
1.122″ [28.50 mm] |
2.952″ [74.99 mm] |
4-start connection |

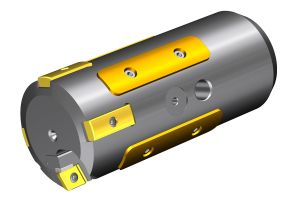

| Counterboring | Type 34 |  |
1.732″ [44.00 mm] |
13.937″ [353.99 mm] |
1-start connection |

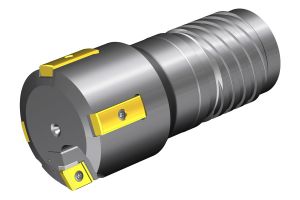

| Counterboring | Type 54 |  |
1.850″ [47.00 mm] |
13.937″ [353.99 mm] |
4-start connection |

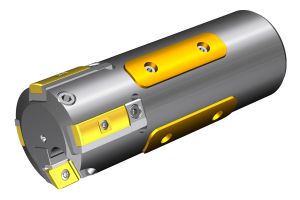

| Counterboring | Type 35B |  |
2.402″ [61.00 mm] |
19.645″ [498.99 mm] |
1-start connection |

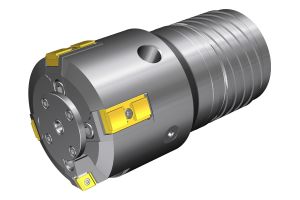

| Counterboring | Type 35A |  |
2.402″ [61.00 mm] |
8.819″ [223.99 mm] |
4-start connection |

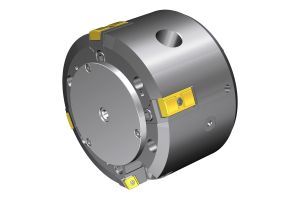

| Counterboring | Type 35F |  |
8.819″ [224.00 mm] |
19.645″ [498.99 mm] |
flange mounting |

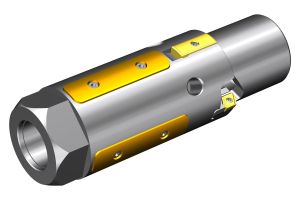

| Pull boring head | Type 38 |  |
0.787″ [20.00 mm] |
8.779″ [222.99 mm] |
1-start connection |
| Pull boring head | Type 58 |  |
0.787″ [20.00 mm] |
8.779″ [222.99 mm] |
4-start connection |

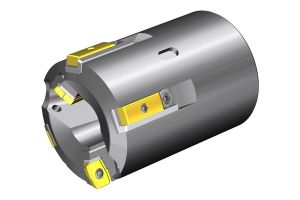

| Trepanning | Type 28 |  |
2.165″ [55.00 mm] |
16.259″ [412.99 mm] |
1-start connection |

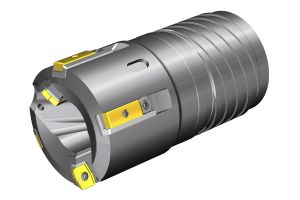

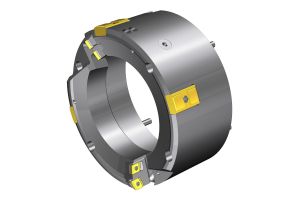

| Trepanning | Type 48 |  |
2.165″ [55.00 mm] |
7.795″ [197.99 mm] |
4-start connection |
| Trepanning | Type 48 |  |
7.795″ [198.00 mm] |
16.259″ [412.99 mm] |
flange mounting |
